# WISECOM, INC.
WS-1414IM4
Card Type Modem (asynchronous)
Chipset UMC
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus 8-bit ISA
Fax Class Class I & II
Data Modulation Bell 212A
ITU-T V.22, V.22bis, V.23, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Error MNP5, V.42, V.42bis
Correction/Compression
IMG IMG 1
+------------------------------------------------------------+

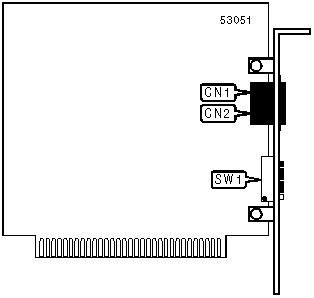

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| 3F8h (COM1:) | On | On |
|--------------------+-------------------+-------------------|
| 2F8h (COM2:) | Off | On |
|--------------------+-------------------+-------------------|
| 3E8h (COM3:) | On | Off |
|--------------------+-------------------+-------------------|
| 2E8h (COM4:) | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| Setting | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
|------------+-----------+-----------+-----------+-----------|
| IRQ2 | On | Off | Off | Off |
|------------+-----------+-----------+-----------+-----------|
| IRQ3 | Off | On | Off | Off |
|------------+-----------+-----------+-----------+-----------|
| IRQ4 | Off | Off | On | Off |
|------------+-----------+-----------+-----------+-----------|
| IRQ5 | Off | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, D, E, H, L, M, N, O, P, Q, T, V, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &L, &P, &S, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \C, \G, \J, \K, \N, \Q, \T, \X |
|------------------------------------------------------------|
| %A, %B, %C, %D, %E, %N, %Q |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S23, S25, S26 |
|------------------------------------------------------------|
| S27, S30, S91 |
|------------------------------------------------------------|
| Note: See MHI documentation for complete information. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| UNIDENTIFIED COMMANDS |
|------------------------------------------------------------|
| Command | Default |
|------------------------------+-----------------------------|
| S15 | 83 |
|------------------------------+-----------------------------|
| S17 | 75 |
|------------------------------+-----------------------------|
| S19 | 3 |
|------------------------------+-----------------------------|
| S20 | 0 |
|------------------------------+-----------------------------|
| S24 | 72 |
|------------------------------+-----------------------------|
| S28 | 16 |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-RELIABLE FALLBACK CHARACTER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S29=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | 1 ASCII character |
|--------------+---------------------------------------------|
| Description: | Sets the character used as the |
| | auto-reliable fallback character. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATION PROTOCOLS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the communication protocol for |
| | low-speed data calls. |
|--------------+---------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| B0 | Modem will use ITU-T V.22 at 1200bps. |
|--------------+---------------------------------------------|
| í B1 | Modem will use Bell 212A at 1200bps. |
|--------------+---------------------------------------------|
| B2 | Modem will use ITU-T V.23 at 1200bps. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested about the |
| | modem. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Displays product identification code. |
|--------------+---------------------------------------------|
| I1 | Displays ROM checksum. |
|--------------+---------------------------------------------|
| I2 | Tests and displays ROM checksum. |
|--------------+---------------------------------------------|
| I3 | Displays firmware revision and model ID. |
|--------------+---------------------------------------------|
| I5 | Displays country code. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EXTENDED RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Vn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects error correction and compression |
| | extended result codes. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \V0 | Error correction and compression extended |
| | result codes disabled. |
|--------------+---------------------------------------------|
| \V1 | \REL added to reliable mode connections. |
|--------------+---------------------------------------------|
| í \V2 | All error correction and compression |
| | extended result codes enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SLEEP TIMER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S13=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 6 |
|--------------+---------------------------------------------|
| Range: | 0 - 255 |
|--------------+---------------------------------------------|
| Unit: | 1 second |
|--------------+---------------------------------------------|
| Description: | The function of this register is |
| | unidentified. |
+------------------------------------------------------------+
