# UNIQUE HARDWARE CO., LTD.
FAXSENGER 34
Card Type Modem (synchronous/asynchronous)
Chipset Unidentified
Maximum Data Rate 28.8Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A, 212A
ITU-T V.21, V.22, V.22bis, V.32,
V.32bis, V.34
Rockwell V.FC
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus Serial
IMG IMG 1
+------------------------------------------------------------+

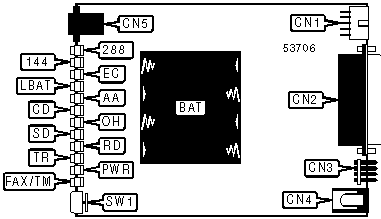

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| 4 AA alkaline cells | BAT | DC power in | CN4 |
| (on bottom) | | | |
|-----------------------+-------+--------------------+-------|
| Serial port | CN1 | Telephone line out | CN5 |
|-----------------------+-------+--------------------+-------|
| Serial port | CN2 | Power switch | SW1 |
|-----------------------+-------+--------------------+-------|
| DC power in | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| 288 | Green | On | Modem connected at 28.8Kbps |
|------+-------+----------+----------------------------------|
| 288 | Green | Off | Modem connected at slower than |
| | | | 28.8Kbps |
|------+-------+----------+----------------------------------|
| 144 | Green | On | Modem connected at 14.4Kbps or |
| | | | faster |
|------+-------+----------+----------------------------------|
| 144 | Green | Off | Modem connected at slower than |
| | | | 14.4Kbps |
|------+-------+----------+----------------------------------|
| EC | Green | On | Error correction enabled |
|------+-------+----------+----------------------------------|
| EC | Green | Off | Error correction disabled |
|------+-------+----------+----------------------------------|
| LBAT | Green | On | Batteries are low |
|------+-------+----------+----------------------------------|
| LBAT | Green | Off | Batteries are good |
|------+-------+----------+----------------------------------|
| AA | Green | On | Auto-answer enabled |
|------+-------+----------+----------------------------------|
| AA | Green | Off | Auto-answer disabled |
|------+-------+----------+----------------------------------|
| AA | Green | Blinking | Phone is ringing |
|------+-------+----------+----------------------------------|
| CD | Green | On | Carrier signal detected |
|------+-------+----------+----------------------------------|
| CD | Green | Off | Carrier signal not detected |
|------+-------+----------+----------------------------------|
| OH | Green | On | Modem is off-hook |
|------+-------+----------+----------------------------------|
| OH | Green | Off | Modem is on-hook |
|------+-------+----------+----------------------------------|
| OH | Green | Blinking | Modem is dialing in pulse mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) (CON'T) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+-------+----------+--------------------------------|
| SD | Green | On | Modem is transmitting data |
|--------+-------+----------+--------------------------------|
| SD | Green | Off | Modem is not transmitting data |
|--------+-------+----------+--------------------------------|
| RD | Green | On | Modem is receiving data |
|--------+-------+----------+--------------------------------|
| RD | Green | Off | Modem is not receiving data |
|--------+-------+----------+--------------------------------|
| TR | Green | On | DTR signal is high |
|--------+-------+----------+--------------------------------|
| TR | Green | Off | DTR signal is low |
|--------+-------+----------+--------------------------------|
| PWR | Green | On | Power is on |
|--------+-------+----------+--------------------------------|
| PWR | Green | Off | Power is off |
|--------+-------+----------+--------------------------------|
| FAX/TM | Green | On | Modem is connected in FAX mode |
|--------+-------+----------+--------------------------------|
| FAX/TM | Green | Blinking | Modem is in test mode |
|--------+-------+----------+--------------------------------|
| FAX/TM | Green | Off | Modem is not connected in FAX |
| | | | mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, B, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &M, &P, &Q, &R, &S, &T, &V, &W, &X, |
| &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K, \L, \N |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| Special AT Commands |
|------------------------------------------------------------|
| +MS |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S23, S25, S26 |
|------------------------------------------------------------|
| S27, S29, S30, S31, S32, S33, S36, S38, S40, S41, S46, |
| S48, S82, S86, S95 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#>;[cmds] |
|--------------+---------------------------------------------|
| Description: | Dials the telephone number indicated |
| | according to any modifiers included in the |
| | string. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DJ | MNP10 link will be negotiated at highest |
| | possible speed for this call. |
|--------------+---------------------------------------------|
| DL | Re-dial last number. |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled. |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n. |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled. |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection. |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register. |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D@ | Wait for Quiet Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
|--------------+---------------------------------------------|
| D^ | Calling tone disabled for this call. |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested about the |
| | modem. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Displays product identification code. |
|--------------+---------------------------------------------|
| I1 | Displays ROM checksum. |
|--------------+---------------------------------------------|
| I2 | Tests and displays ROM checksum result. |
|--------------+---------------------------------------------|
| I3 | Displays firmware revision. |
|--------------+---------------------------------------------|
| I4 | Displays chipset model. |
|--------------+---------------------------------------------|
| I5 | Displays country code. |
|--------------+---------------------------------------------|
| I6 | Displays product name. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISTINCTIVE RING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &In [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects which distinctive ring signals the |
| | modem will respond to. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &I0 | Modem will respond to any ring signal. |
|--------------+---------------------------------------------|
| &I1 | Modem will only respond to Homefax II type |
| | B ring signal. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S39=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the type of flow control the modem |
| | will use. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S39=0 | Flow control disabled. |
|--------------+---------------------------------------------|
| í S39=3 | RTS/CTS flow control enabled. |
|--------------+---------------------------------------------|
| S39=4 | XON/XOFF flow control enabled. |
|--------------+---------------------------------------------|
| S39=5 | Transparent XON/XOFF flow control enabled. |
|--------------+---------------------------------------------|
| S39=6 | Both RTS/CTS and XON/XOFF flow control |
| | enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S37=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable data exchange |
| | rate attempted during the handshaking |
| | process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í S37=0 | Attempt to connect at fastest common speed. |
|--------------+---------------------------------------------|
| S37=1 | Set speed to 300bps. |
|--------------+---------------------------------------------|
| S37=2 | Set speed to 300bps. |
|--------------+---------------------------------------------|
| S37=3 | Set speed to 300bps. |
|--------------+---------------------------------------------|
| S37=5 | Set speed to 1200bps. |
|--------------+---------------------------------------------|
| S37=6 | Set speed to 2400bps. |
|--------------+---------------------------------------------|
| S37=7 | Attempt to connect with V.23. |
|--------------+---------------------------------------------|
| S37=8 | Set speed to 4800bps. |
|--------------+---------------------------------------------|
| S37=9 | Set speed to 9600bps. |
|--------------+---------------------------------------------|
| S37=10 | Set speed to 12Kbps. |
|--------------+---------------------------------------------|
| S37=11 | Set speed to 14.4Kbps. |
|--------------+---------------------------------------------|
| S37=12 | Set speed to 7200bps. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PROTOCOL/SPEED |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Fn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the protocol and speed the modem |
| | will attempt to connect at. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| F0 | Auto-detect the highest common connect |
| | speed. |
|--------------+---------------------------------------------|
| F1 | Select V.21 or Bell 103 at 300bps speed. |
|--------------+---------------------------------------------|
| F4 | Select V.22 or Bell 212A at 1200bps speed. |
|--------------+---------------------------------------------|
| F5 | Select V.22bis at 2400bps speed. |
|--------------+---------------------------------------------|
| F6 | Select V.32 or V.32bis at 4800bps speed. |
|--------------+---------------------------------------------|
| F7 | Select V.32bis at 7200bps speed. |
|--------------+---------------------------------------------|
| F8 | Select V.32bis or V.32 at 9600bps speed. |
|--------------+---------------------------------------------|
| F9 | Select V.32bis at 12Kbps speed. |
|--------------+---------------------------------------------|
| F10 | Select V.32bis at 14.4Kbps speed. |
+------------------------------------------------------------+
