# ZOLTRIX, INC.
FM-336FI
Card Type Modem (asynchronous)
Chipset Rockwell
Maximum Data Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A, 212A
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Rockwell V.FC
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I
Data Bus 16-bit ISA
Card Size Full height, half length

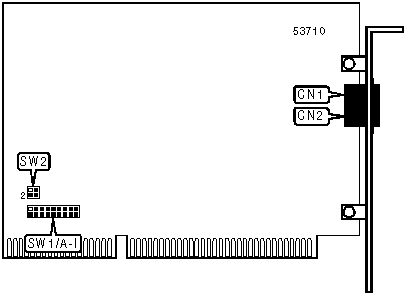

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Telephone line out | CN1 | Telephone line in | CN2 |
+------------------------------------------------------------+
+----------------------------------------------------------------------+
| INTERRUPT SELECTION |
|----------------------------------------------------------------------|
|Setting|SW1/A |SW1/B |SW1/C |SW1/D |SW1/E |SW1/F |SW1/G |SW1/H |SW1/I |
|-------+------+------+------+------+------+------+------+------+------|
| 2/9 | Open | Open | Open | Open |Closed| Open | Open | Open | Open |
|-------+------+------+------+------+------+------+------+------+------|
| 3 | Open | Open | Open | Open | Open | Open | Open | Open |Closed|
|-------+------+------+------+------+------+------+------+------+------|
| 4 | Open | Open | Open | Open | Open | Open | Open |Closed| Open |
|-------+------+------+------+------+------+------+------+------+------|
| 5 | Open | Open | Open | Open | Open | Open |Closed| Open | Open |
|-------+------+------+------+------+------+------+------+------+------|
| 7 | Open | Open | Open | Open | Open |Closed| Open | Open | Open |
|-------+------+------+------+------+------+------+------+------+------|
| 10 | Open | Open | Open |Closed| Open | Open | Open | Open | Open |
|-------+------+------+------+------+------+------+------+------+------|
| 11 | Open | Open |Closed| Open | Open | Open | Open | Open | Open |
|-------+------+------+------+------+------+------+------+------+------|
| 12 | Open |Closed| Open | Open | Open | Open | Open | Open | Open |
|-------+------+------+------+------+------+------+------+------+------|
| 15 |Closed| Open | Open | Open | Open | Open | Open | Open | Open |
+----------------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | SW2 |
|----------------------------+-------------------------------|
| 3F8h (COM1:) | Pins 1 & 2, 3 & 4 closed |
|----------------------------+-------------------------------|
| 2F8h (COM2:) | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| 3E8h (COM3:) | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 2E8h (COM4:) | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, B, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &P, &Q, &R, &S, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \K, \N |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| Special AT Commands |
|------------------------------------------------------------|
| +MS |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S23, S25, S26 |
|------------------------------------------------------------|
| S27, S29, S30, S31, S32, S33, S36, S38, S46, S48, S82, |
| S86, S95 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| UNIDENTIFIED COMMANDS |
|------------------------------------------------------------|
| Command | Default |
|----------------------------+-------------------------------|
| S39 | Unidentified |
|----------------------------+-------------------------------|
| S40 | Unidentified |
|----------------------------+-------------------------------|
| S41 | Unidentified |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#>;[cmds] |
|--------------+---------------------------------------------|
| Description: | Dials the telephone number indicated |
| | according to any modifiers included in the |
| | string. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DL | Re-dial last number. |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled. |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n. |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled. |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection. |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register. |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D@ | Wait for Quiet Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
|--------------+---------------------------------------------|
| D^ | Calling tone enabled for this call. |
|--------------+---------------------------------------------|
| D& | Wait for prompt tone detection function |
| | enabled. Waits for prompt tone for amount |
| | of time specified by the S7 command. |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested about the |
| | modem. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Displays product identification code. |
|--------------+---------------------------------------------|
| I1 | Displays ROM checksum. |
|--------------+---------------------------------------------|
| I2 | Tests and displays ROM checksum result. |
|--------------+---------------------------------------------|
| I3 | Displays firmware revision. |
|--------------+---------------------------------------------|
| I6 | Displays data pump model and revision. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S37=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable data exchange |
| | rate attempted during the handshaking |
| | process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í S37=0 | Attempt to connect at fastest common speed. |
|--------------+---------------------------------------------|
| S37=1 | Set speed to 300bps. |
|--------------+---------------------------------------------|
| S37=2 | Set speed to 300bps. |
|--------------+---------------------------------------------|
| S37=3 | Set speed to 300bps. |
|--------------+---------------------------------------------|
| S37=5 | Set speed to 1200bps. |
|--------------+---------------------------------------------|
| S37=6 | Set speed to 2400bps. |
|--------------+---------------------------------------------|
| S37=7 | Attempt to connect with V.23. |
|--------------+---------------------------------------------|
| S37=8 | Set speed to 4800bps. |
|--------------+---------------------------------------------|
| S37=9 | Set speed to 9600bps. |
|--------------+---------------------------------------------|
| S37=10 | Set speed to 12Kbps. |
|--------------+---------------------------------------------|
| S37=11 | Set speed to 14.4Kbps. |
|--------------+---------------------------------------------|
| S37=12 | Set speed to 7200bps. |
+------------------------------------------------------------+
