# U.S. ROBOTICS, INC.
SPORTSTER 56K VOICE FAXMODEM (INTERNAL)
Card Type Modem (asynchronous)
Chipset U.S. Robotics, Inc.
I/O Options Voice, speakerphone, microphone in,
speaker out
Maximum Data Rate 56Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A/212A
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
U.S. Robotics x2
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus 8-bit ISA
Card Size Full height, one-third length
IMG IMG 1
+------------------------------------------------------------+

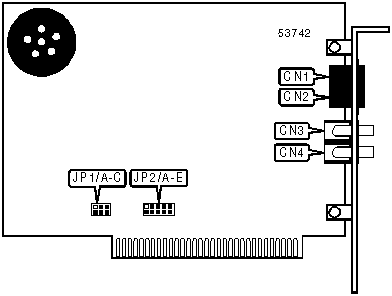

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Telephone line out | CN1 | Microphone in | CN3 |
|------------------------+-------+-------------------+-------|
| Telephone line in | CN2 | Speaker out | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------+------------+---------------|
| í Plug-N-Play disabled | JP1/C | Closed |
|-------------------------------+------------+---------------|
| Plug-N-Play enabled | JP1/C | Open |
|------------------------------------------------------------|
| Note: For Plug-N-Play to be enabled, JP1/A-B and JP2/A-E |
| must be set to open. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP1/A | JP1/B |
|--------------------+-------------------+-------------------|
| 3F8h (COM1:) | Closed | Closed |
|--------------------+-------------------+-------------------|
| í 2E8h (COM2:) | Open | Closed |
|--------------------+-------------------+-------------------|
| 3F8h (COM3:) | Closed | Open |
|--------------------+-------------------+-------------------|
| 2E8h (COM4:) | Open | Open |
|--------------------+-------------------+-------------------|
| Plug-N-Play | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| Setting | JP2/A | JP2/B | JP2/C | JP2/D | JP2/E |
|-------------+---------+---------+--------+--------+--------|
| 2 | Closed | Open | Open | Open | Open |
|-------------+---------+---------+--------+--------+--------|
| í 3 | Open | Closed | Open | Open | Open |
|-------------+---------+---------+--------+--------+--------|
| 4 | Open | Open | Closed | Open | Open |
|-------------+---------+---------+--------+--------+--------|
| 5 | Open | Open | Open | Closed | Open |
|-------------+---------+---------+--------+--------+--------|
| 7 | Open | Open | Open | Open | Closed |
|-------------+---------+---------+--------+--------+--------|
| Plug-N-Play | Open | Open | Open | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, B, D, E, F, H, L, M, O, P, T, V, X, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &P, &R, &S, &T, &W |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S18, S25, S38 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
Proprietary AT Command Set
See U.S. ROBOTICS SPORTSTER 56K FAXMODEM (INTERNAL) for a full
command summary.
