# ZOLTRIX, INC.
FM-HSP336P
Card Type Modem, Fax
Chip Set PCtel
I/O Options Line in (RJ-11), line out (RJ-11)
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34, V.34bis
Fax Modulation ITU-T V.17, V.21CHANNEL2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I
Data Bus 16-bit ISA
Card Size Half-length, half-height card
IMG IMG 1
+------------------------------------------------------------+

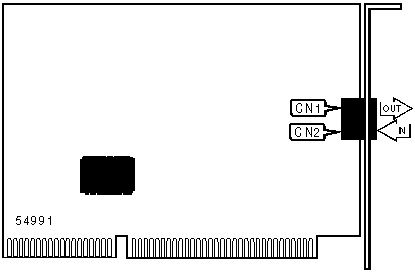

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN1 | Line in | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, A/ |
|------------------------------------------------------------|
| A, B, D, E, H, I, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &P, &S, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K, \L, \N |
|------------------------------------------------------------|
| %C, %E, %L |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S18, S25, S30, S32, S33, S37, S38, S86, |
|------------------------------------------------------------|
| S91 |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| TRELLIS CODING CONFIGURATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Un [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the Trellis coding settings |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &U1 | Trellis coding disabled |
|--------------+---------------------------------------------|
| &U1 | Trellis coding enabled |
+------------------------------------------------------------+
Extended AT Commands
+------------------------------------------------------------+
| CPU USAGE SETTINGS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the total usage of the CPU while |
| | operating the modem. Default=%N7 |
+------------------------------------------------------------+
S(Status)-Register
+------------------------------------------------------------+
| V.34 DATA RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S34=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 11 |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | bits |
|--------------+---------------------------------------------|
| Description: | Determines the data rate while using V.34 |
| | compression |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.34 SYMBOL RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S34=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Description: | Determines the baud rate while using V.34 |
| | compression |
+------------------------------------------------------------+
