# WISECOM, INC.
WS-5614JS3/ES3 (INTERNAL)
Card Type Modem
Chip Set Unidentified
I/O Options Line out, line in, speaker out,
microphone in
Maximum Modem Rate 56Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103/212A
Protocol
ITU-T V.22, V.22bis, V.32, V.32bis,
V.34, 56Kflex
Fax Modulation ITU-T V.17, V.21 CH.2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I
Data Bus 8-bit ISA
IMG IMG 1
+------------------------------------------------------------+

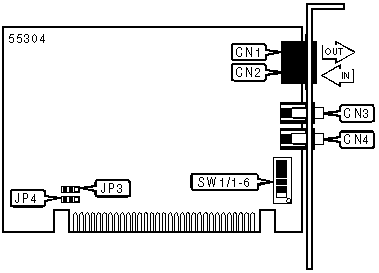

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out (RJ-11) | CN1 | Speaker out | CN3 |
|---------------------------+---------+---------------+------|
| Line in (RJ-11) | CN2 | Microphone in | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PLUG & PLAY |
|------------------------------------------------------------|
| Setting | JP3 | JP4 |
|--------------------+-------------------+-------------------|
| ? Plug & play | Pins 1 & 2 closed | Pins 1 & 2 closed |
| enabled | | |
|--------------------+-------------------+-------------------|
| Plug & play | Pins 2 & 3 closed | Pins 2 & 3 closed |
| disabled | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| COM1 (3F8h) | On | On |
|--------------------+-------------------+-------------------|
| COM2 (2F8h) | Off | On |
|--------------------+-------------------+-------------------|
| COM3 (3E8h) | On | Off |
|--------------------+-------------------+-------------------|
| COM4 (2E8h) | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| IRQ | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
|----------------+----------+----------+----------+----------|
| 2 | On | Off | Off | Off |
|----------------+----------+----------+----------+----------|
| 3 | Off | On | Off | Off |
|----------------+----------+----------+----------+----------|
| 4 | Off | Off | On | Off |
|----------------+----------+----------+----------+----------|
| 5 | Off | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, A/ |
|------------------------------------------------------------|
| A, B, E, H, V |
|------------------------------------------------------------|
| &C, &M, &P, &T, &V, &W, &X, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| \A, \B, \K, \N |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9,S10, S11, S12, S14, |
| S16, S18, S21, S22, S23, S24, S25 |
|------------------------------------------------------------|
| S26, S27, S29, S30, S31, S32, S33, S36, S37, S38, S39, |
| S40, S41, S46, S48, S82, S91, S92, S95 |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
PROPRIETARY AT COMMAND SET
+------------------------------------------------------------+
| COMMUNICATIONS MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Qn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects communications mode options |
|--------------+---------------------------------------------|
| Command | Mode |
|--------------+---------------------------------------------|
| &Q0 | Asynchronous mode, serial port speed |
| | follows connect speed. |
|--------------+---------------------------------------------|
| &Q1 | Asynchronous off-line command mode and |
| | synchronous connect mode. |
|--------------+---------------------------------------------|
| &Q2 | Asynchronous off-line command mode - modem |
| | autodials first number in directory, then |
| | synchronous connect mode. |
|--------------+---------------------------------------------|
| &Q3 | Asynchronous off-line command mode on low |
| | DTR, synchronous connect mode on high DTR. |
|--------------+---------------------------------------------|
| ? &Q5 | Error correction mode |
|--------------+---------------------------------------------|
| &Q6 | Buffered asynchronous mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem response to DTR |
|------------------------------------------------------------|
| Command | Mode |
|-----------------+------------------------------------------|
| &D0 | DTR ignored |
|-----------------+------------------------------------------|
| &D1 | DTR toggle causes online command mode |
|-----------------+------------------------------------------|
| ? &D2 | DTR toggle causes modem to go on-hook |
|-----------------+------------------------------------------|
| &D3 | Modem reset on DTR toggle |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY DEFAULT PROFILE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &F [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets values in active profile to values |
| | found in the default profile |
|--------------+---------------------------------------------|
| &F0 | Load factory configuration 0 |
|--------------+---------------------------------------------|
| &F1 | Load factory configuration 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| ? &K6 | Both RTS/CTS & XON/XOFF flow control |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GUARD TONE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Commands the modem to transmit a guard tone |
| | in V.22/V.22bis |
|------------------------------------------------------------|
| Note: Used primarily for international data |
| transmission |
|------------------------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| ? &G0 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G1 | 550Hz guard tone enabled |
|--------------+---------------------------------------------|
| &G2 | 1800Hz guard tone enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports modem model and speed |
|--------------+---------------------------------------------|
| I1 | Reports ROM checksum |
|--------------+---------------------------------------------|
| I2 | Tests and reports ROM checksum |
|--------------+---------------------------------------------|
| I3 | Reports product ID string |
|--------------+---------------------------------------------|
| I6 | Reports diagnostic information |
|--------------+---------------------------------------------|
| I7 | Reports product configuration |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RESTORE PROFILE ON POWER-UP |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Yn [cmds] |
|--------------+---------------------------------------------|
| Description: | Restores a selected profile to default |
| | profile on power-up (hard reset) |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| ? Y0 | Restore stored profile 0 on power-up |
|--------------+---------------------------------------------|
| Y1 | Restore stored profile 1 on power-up |
|--------------+---------------------------------------------|
| Y2 | Load factory default configuration 0 on |
| | power-up |
|--------------+---------------------------------------------|
| Y3 | Load factory default configuration 1 on |
| | power-up |
|--------------+---------------------------------------------|
| Y4 | Load factory default configuration 2 on |
| | power-up |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RTS/CTS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Rn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects RTS/CTS options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &R0 | CTS follows RTS in data mode; RTS is |
| | ignored in command mode. |
|--------------+---------------------------------------------|
| ? &R1 | CTS forced high, RTS is ignored. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SOFT RESET |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Zn [cmds] |
|--------------+---------------------------------------------|
| Description: | Restores modem profiles previously stored |
| | in non-volatile RAM using the &W command |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| ? Z1 | Restore stored profile 0 |
|--------------+---------------------------------------------|
| Z2 | Restore stored profile 1 |
|--------------+---------------------------------------------|
| Z3 | Load factory default configuration 0 |
|--------------+---------------------------------------------|
| Z4 | Load factory default configuration 1 |
|--------------+---------------------------------------------|
| Z5 | Load factory default configuration 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Mn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various speaker options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| M0 | Speaker disabled |
|--------------+---------------------------------------------|
| M1 | Speaker enabled until carrier signal |
| | detected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER VOLUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| L0 | Low volume setting |
|--------------+---------------------------------------------|
| L1 | Low volume setting |
|--------------+---------------------------------------------|
| ? L2 | Medium volume setting |
|--------------+---------------------------------------------|
| L3 | Highest volume setting |
+------------------------------------------------------------+
EXTENDED AT COMMAND SET
+------------------------------------------------------------+
| MODULATION SELECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +MS=x,y,z,a,b,c [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets options for active protocol; the |
| | transfer rates specified by z and a must be |
| | valid for the protocol selected. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| x=0 | V.21 |
|--------------+---------------------------------------------|
| x=1 | V.22 |
|--------------+---------------------------------------------|
| x=2 | V.22bis |
|--------------+---------------------------------------------|
| x=3 | V.23 |
|--------------+---------------------------------------------|
| x=9 | V.32 |
|--------------+---------------------------------------------|
| x=10 | V.32bis |
|--------------+---------------------------------------------|
| x=11 | V.34, K56flex |
|--------------+---------------------------------------------|
| x=64 | Bell 103 |
|--------------+---------------------------------------------|
| x=69 | Bell 212A |
|--------------+---------------------------------------------|
| y=0 | Automode disabled |
|--------------+---------------------------------------------|
| y=1 | Auto-detect highest speed enabled |
|--------------+---------------------------------------------|
| z, a=300 | Set minimum or maximum transfer rate at |
| | 300bps, respectively. |
|--------------+---------------------------------------------|
| z, a=1200 | Set minimum or maximum transfer rate at |
| | 1200bps, respectively. |
|--------------+---------------------------------------------|
| z, a=2400 | Set minimum or maximum transfer rate at |
| | 2400bps, respectively. |
|--------------+---------------------------------------------|
| z, a=4800 | Set minimum or maximum transfer rate at |
| | 4800bps, respectively. |
|--------------+---------------------------------------------|
| z, a=7200 | Set minimum or maximum transfer rate at |
| | 7200bps, respectively. |
|--------------+---------------------------------------------|
| z, a=9600 | Set minimum or maximum transfer rate at |
| | 9600bps, respectively. |
|--------------+---------------------------------------------|
| z, a=12000 | Set minimum or maximum transfer rate at |
| | 12000bps, respectively. |
|--------------+---------------------------------------------|
| z, a=14400 | Set minimum or maximum transfer rate at |
| | 14400bps, respectively. |
|--------------+---------------------------------------------|
| z, a=16800 | Set minimum or maximum transfer rate at |
| | 16800bps, respectively. |
|--------------+---------------------------------------------|
| z, a=19200 | Set minimum or maximum transfer rate at |
| | 19200bps, respectively. |
|--------------+---------------------------------------------|
| z, a=21600 | Set minimum or maximum transfer rate at |
| | 21600bps, respectively. |
|--------------+---------------------------------------------|
| z, a=24000 | Set minimum or maximum transfer rate at |
| | 24000bps, respectively. |
|--------------+---------------------------------------------|
| z, a=26400 | Set minimum or maximum transfer rate at |
| | 26400bps, respectively. |
|--------------+---------------------------------------------|
| z, a=28800 | Set minimum or maximum transfer rate at |
| | 28800bps, respectively. |
|--------------+---------------------------------------------|
| z, a=33600 | Set minimum or maximum transfer rate at |
| | 33600bps, respectively. |
|--------------+---------------------------------------------|
| b=0 | m -law encoding |
|--------------+---------------------------------------------|
| b=1 | A -law encoding |
|--------------+---------------------------------------------|
| c=0 | Robbed bit signaling disabled |
|--------------+---------------------------------------------|
| c=1 | Robbed bit signaling enabled |
+------------------------------------------------------------+
S(Status) REGISTERS
+------------------------------------------------------------+
| CONNECTION FAILURE CODES |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S86? [cmds] |
|--------------+---------------------------------------------|
| Description: | Reports codes which correspond to the |
| | possible causes of a connection failure |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Normal hang up |
|--------------+---------------------------------------------|
| 4 | Carrier signal lost |
|--------------+---------------------------------------------|
| 5 | No error-control detected for remote modem |
| | during feature negotiation |
|--------------+---------------------------------------------|
| 9 | No common protocol found |
|--------------+---------------------------------------------|
| 12 | No failure - remote modem disconnected |
| | normally |
|--------------+---------------------------------------------|
| 13 | Remote modem failed to respond after 10 |
| | re-transmissions same message |
|--------------+---------------------------------------------|
| 14 | Violation of negotiated protocol caused |
| | failure |
+------------------------------------------------------------+
