# VIKING COMPONENTS
Card Type Modem
Chip Set Unidentified
I/O Options Line out, line in, microphone in,
speaker out
Maximum Modem Rate 56Kbps
Maximum Fax Rate Unidentified
Data Modulation Bell 103/212A
Protocol
ITU-T V.22, V.22bis, V.32ter, V.32bis,
V.34, 56Kflex
Fax Modulation Unidentified
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Unidentified
Data Bus 8-bit ISA

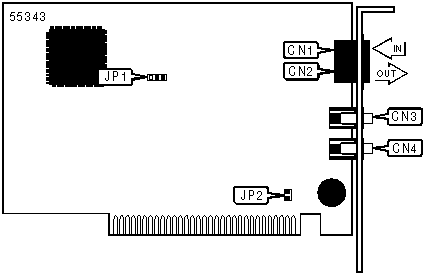

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------+-------+-------------------------+-------|
| Line in (RJ-11) | CN1 | Microphone in | CN3 |
| | | (Optional) | |
|------------------+-------+-------------------------+-------|
| Line out (RJ-11) | CN2 | Speaker out (Optional) | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------+-------+----------------|
| » | Headset compatibility enabled | JP1 | Pins 2 & 3 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| | Phone compatibility enabled | JP1 | Pins 1 & 2 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| » | Internal speaker enabled | JP2 | Closed |
|---+-------------------------------+-------+----------------|
| | External speaker enabled | JP2 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, A/ |
|------------------------------------------------------------|
| A, E, H, M, O, X, V, Z |
|------------------------------------------------------------|
| &M, &R, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| %E |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S24, |
| S32, S33 |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| #CID |
|------------------------------------------------------------|
| Note: Please see MHI Help file for full command |
| documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
For a full command summary, see VIKING COMPONENTS 33.6K/56K PC
CARD MODEM
