# ATI TECHNOLOGIES, INC.
VGASTEREO-F/X
Category Video
Video Types Supported XVGA
Video Processor Unidentified
Highest Resolution Supported 1024 X 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 1024KB

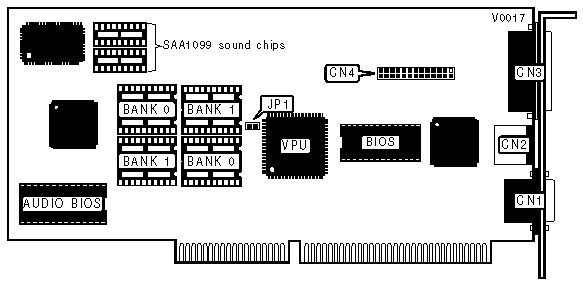

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| 15-pin analog | CN1 | MIDI/Audio port | CN3 |
| video port | | | |
|-------------------+----------+------------------+----------|
| Mouse port | CN2 | VESA feature | CN4 |
| | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP1 |
|---------------------------------+--------------------------|
| ยป | Enabled | Open |
|---+-----------------------------+--------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1024KB | (4) 44256 | NONE |
|------------------+--------------------+--------------------|
| 2048KB | (4) 44256 | (4) 44256 |
+------------------------------------------------------------+
