# ATI TECHNOLOGIES, INC.
GRAPHICS ULTRA
Category Video
Video Types Supported XVGA
Video Processor Mach8
Highest Resolution Supported 1280 x 1024
Data Bus Type 16-bit ISA
Memory Type VRAM
Maximum Onboard Memory 1024KB
IMG IMG 1
+------------------------------------------------------------+

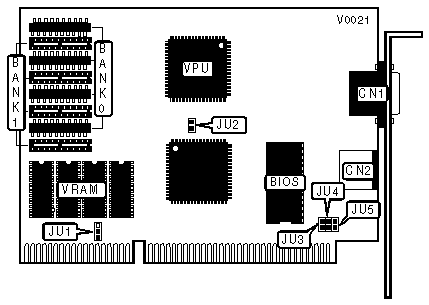

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------------+----------+------------+----------|
| 15-pin analog video | CN1 | Mouse port | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED - DO NOT ALTER |
|------------------------------------------------------------|
| Jumper | Position |
|-----------------------------+------------------------------|
| JU3 | Open |
|-----------------------------+------------------------------|
| JU4 | Open |
|-----------------------------+------------------------------|
| JU5 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COPROCESSOR BUS I/O SELECTION |
|------------------------------------------------------------|
| BUS | JU6 |
|----------------------------+-------------------------------|
| ยป | 16-bit | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | 8-bit | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | JU2 |
|-----------+------------------+------------------+----------|
| 512KB | (4) 256K x 4 ZIP | NONE | Closed |
|-----------+------------------+------------------+----------|
| 1024KB | (4) 256K x 4 ZIP | (4) 256K x 4 ZIP | Open |
+------------------------------------------------------------+
