       # ADVANCED INTEGRATION RESEARCH, INC.

          TSVGA EISA LOCAL BUS

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              ET4000
          Highest Resolution Supported 1280 x 1024
          Data Bus Type                16-bit EISA
          Memory Type                  DRAM or VRAM
          Maximum Onboard Memory       1024KB

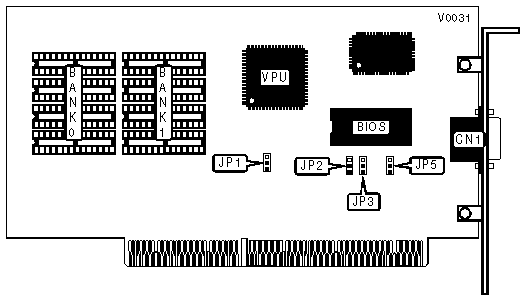

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |            Purpose            |          Location          |
          |-------------------------------+----------------------------|
          | 15-pin analog video port      |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |          IRQ 2/9           |              JP1              |
          |----------------------------+-------------------------------|
          | » |        Disabled        |       Pins 1 & 2 closed       |
          |---+------------------------+-------------------------------|
          |   |        Enabled         |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   WAIT STATE SELECTION                     |
          |------------------------------------------------------------|
          | Memory wait  |   I/O wait   |      JP2      |     JP3      |
          |    state     |    state     |               |              |
          |--------------+--------------+---------------+--------------|
          |    |    1    |      3       |  Pins 1 & 2   |  Pins 1 & 2  |
          |    |         |              |    closed     |    closed    |
          |----+---------+--------------+---------------+--------------|
          | »  |    2    |      4       |  Pins 2 & 3   |  Pins 1 & 2  |
          |    |         |              |    closed     |    closed    |
          |----+---------+--------------+---------------+--------------|
          |    |    3    |      3       |  Pins 1 & 2   |  Pins 2 & 3  |
          |    |         |              |    closed     |    closed    |
          |----+---------+--------------+---------------+--------------|
          |    |    4    |      4       |  Pins 2 & 3   |  Pins 2 & 3  |
          |    |         |              |    closed     |    closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              MAIN BOARD PROCESSOR SELECTION                |
          |------------------------------------------------------------|
          |            Type            |              JP5              |
          |----------------------------+-------------------------------|
          |          80386DX           |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |          80486SX           |       Pins 2 & 3 closed       |
          |----------------------------+-------------------------------|
          |          80486DX           |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  DRAM/VRAM CONFIGURATION                   |
          |------------------------------------------------------------|
          |     Size      |        Bank 0         |       Bank 1       |
          |---------------+-----------------------+--------------------|
          |     512KB     |     (4) 256K x 4      |        None        |
          |---------------+-----------------------+--------------------|
          |    1024KB     |     (4) 256K x 4      |    (4) 256K x 4    |
          |------------------------------------------------------------|
          | Note: TSVGA card may be configured from the factory with   |
          | either DRAM or VRAM.                                       |
          +------------------------------------------------------------+
