# ASUS AMERICA INC.
PCI-V805
Category Video
Video Types Supported XVGA
Video Processor S3 Inc.
Highest Resolution Supported 1280 x 1024
Data Bus Type 32-bit PCI-bus
Memory Type DRAM
Maximum Onboard Memory 2MB
IMG IMG 1
+------------------------------------------------------------+

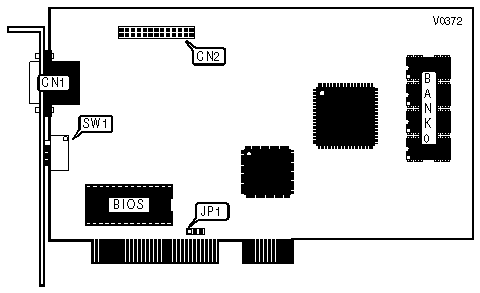

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| 15 pin analog video | CN1 | VESA Feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY CONFIGURATION |
|------------------------------------------------------------|
| Mode/Sync | Horizontal | Vertical | SW1/2 | SW1/3 |
| | Frequency | Frequency | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 48.1KHz | 44.5Hz | On | On |
| x 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 48.1KHz | 44.5Hz | On | Off |
| x 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 64.0KHz | 60.0Hz | Off | On |
| x 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 64.0KHz | 60.0Hz | Off | Off |
| x 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 48.1KHz | 44.5Hz | On | On |
| x 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 48.1KHz | 44.5Hz | On | Off |
| x 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 64.0KHz | 60.0Hz | Off | On |
| x 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 1280 x 1024 | 64.0KHz | 60.0Hz | Off | Off |
| x 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 1152 x 864 x | 53.5KHz | 56.0Hz | On | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1152 x 864 x | 53.5KHz | 56.0Hz | On | Off |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1152 x 864 x | 53.5KHz | 56.0Hz | Off | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1152 x 864 x | 53.5KHz | 56.0Hz | Off | Off |
| 8 | | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY CONFIGURATION (CONTINUED) |
|------------------------------------------------------------|
| Mode/Sync | Horizontal | Vertical | SW1/2 | SW1/3 |
| | Frequency | Frequency | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | On | On |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | On | Off |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | Off | On |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | Off | Off |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | On | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | On | Off |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 48.5KHz | 60.0Hz | Off | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 56.5KHz | 70.0Hz | Off | Off |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | On | On |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 35.5KHz | 43.5Hz | On | Off |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 48.5KHz | 60.0Hz | Off | On |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 1024 x 768 x | 56.5KHz | 70.0Hz | Off | Off |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 37.9KHz | 60.0Hz | On | On |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 37.9KHz | 60.0Hz | On | Off |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 37.9KHz | 60.0Hz | Off | On |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 37.9KHz | 60.0Hz | Off | Off |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 35.5KHz | 56.0Hz | On | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 35.5KHz | 56.0Hz | On | Off |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 37.9KHz | 60.0Hz | Off | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 48.1KHz | 72.0Hz | Off | Off |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 35.5KHz | 56.0Hz | On | On |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 35.5KHz | 56.0Hz | On | Off |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 37.9KHz | 60.0Hz | Off | On |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 800 x 600 x | 48.1KHz | 72.0Hz | Off | Off |
| 4 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | On | On |
| 24 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | On | Off |
| 24 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | Off | On |
| 24 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | Off | Off |
| 24 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 31.5KHz | 60.0Hz | On | On |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 31.5KHz | 60.0Hz | On | Off |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | Off | On |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | Off | Off |
| 16 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 31.5KHz | 60.0Hz | On | On |
| 15 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 31.5KHz | 60.0Hz | On | Off |
| 15 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | Off | On |
| 15 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | Off | Off |
| 15 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 31.5KHz | 60.0Hz | On | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 31.5KHz | 60.0Hz | On | Off |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 31.5KHz | 60.0Hz | Off | On |
| 8 | | | | |
|--------------+----------------+------------+-------+-------|
| 640 x 480 x | 38.0KHz | 73.0Hz | Off | Off |
| 8 | | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO INTERUPT SELECT |
|------------------------------------------------------------|
| IRQ | JP1 |
|----------------------------+-------------------------------|
| ยป | Disabled | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Enabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Switch | Setting |
|------------------------------+-----------------------------|
| SW1/1 | N/A |
|------------------------------+-----------------------------|
| SW1/4 | N/A |
|------------------------------------------------------------|
| Note:These switches are reserved for future use. |
+------------------------------------------------------------+
