# AMERICAN MEGATRENDS, INC.
FAST VIEW EISA
Category Video
Video Types Supported XVGA
Video Processor S3
Highest Resolution Supported 1280 X 1024
Data Bus Type 16-bit EISA
Memory Type VRAM
Maximum Onboard Memory 1MB

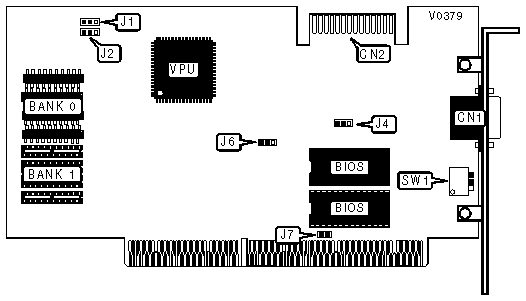

IMG IMG 1
+------------------------------------------------------------+
| REFRESH RATE CONFIGURATION |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| 15-pin analog video | CN1 | VESA Feature | CN2 |
| port | | Connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 640 X 480 REFRESH RATES |
|------------------------------------------------------------|
| Refresh | SW1/switch 1 | SW1/switch 2 | SW1/switch 3 |
|------------+---------------+---------------+---------------|
| 60Hz | Off | Off | Off |
|------------+---------------+---------------+---------------|
| 70Hz | On | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 800 X 600 REFRESH RATES |
|------------------------------------------------------------|
| Refresh | SW1/switch 1 | SW1/switch 2 | SW1/switch 3 |
|------------+---------------+---------------+---------------|
| 60Hz | Off | On | Off |
|------------+---------------+---------------+---------------|
| 70Hz | On | On | Off |
|------------+---------------+---------------+---------------|
| 56Hz | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 1024 X 768 REFRESH RATES |
|------------------------------------------------------------|
| Refresh | SW1/switch 1 | SW1/switch 2 | SW1/switch 3 |
|------------+---------------+---------------+---------------|
| 43Hz | On | Off | On |
|------------+---------------+---------------+---------------|
| 60Hz | Off | On | On |
|------------+---------------+---------------+---------------|
| 70Hz | On | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|----------------------------+-------------------------------|
| J2 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| J4 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| J6 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| J7 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | J1 |
|--------+---------------+---------------+-------------------|
| 512KB | (4) 44256 ZIP | None | Pins 2 & 3 closed |
|--------+---------------+---------------+-------------------|
| 1024KB | (4) 44256 ZIP | (4) 44256 ZIP | Pins 1 & 2 closed |
+------------------------------------------------------------+
