# ASKA TECHNOLOGIES
ASKA-8133
Category Video
Video Types Supported Monochrome
Video Processor Unidentified
Highest Resolution Supported 720 x 348
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 64KB

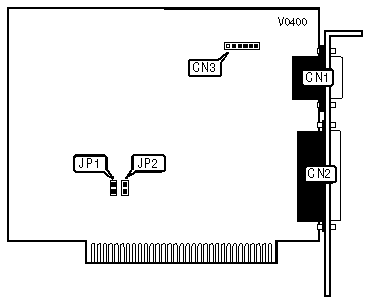

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------------+----------+------------+----------|
| 15-pin analog video | CN1 | Light pen | CN3 |
| port | | connector | |
|-------------------------+----------+------------+----------|
| Parallel port | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ROM CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP1 |
|---------------------------------+--------------------------|
| » | Enabled | Open |
|---+-----------------------------+--------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP2 |
|----------------------------------+-------------------------|
| » | Enabled | Open |
|-----+----------------------------+-------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
