# ATI TECHNOLOGIES, INC.
GRAPHICS PRO TURBO
Category Video
Video Types Supported XVGA
Video Processor ATI Mach 64
Highest Resolution Supported 1280 x 1024
Data Bus Type PCI local bus slot
Memory Type DRAM
Maximum Onboard Memory 4MB
IMG IMG 1
+------------------------------------------------------------+

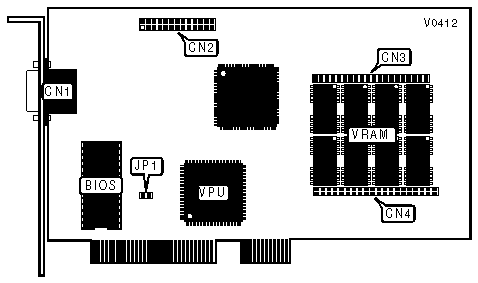

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| 15 pin analog | CN1 | Video memory upgrade | CN3 |
| video port | | connector | |
|---------------+----------+----------------------+----------|
| VESA Feature | CN2 | Video memory upgrade | CN4 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | JP1 |
|---------------------------------+--------------------------|
| ยป | Disabled | Open |
|----+----------------------------+--------------------------|
| | Enabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Note:Graphics Pro Turbo has 2MB video memory using (8) |
| 44256 DRAM. To upgrade to 4MB, a memory upgrade module |
| is installed in CN3 and CN4. |
+------------------------------------------------------------+
