# AITECH INTERNATIONAL CORPORATION
GAMEPLAYERTV (W/O AUDIO)
Category Video
Video Types Supported XVGA
Video Processor AITech International
Highest Resolution Supported 800 x 600
Data Bus Type 8-bit ISA
Memory Type N/A
Maximum Onboard Memory None

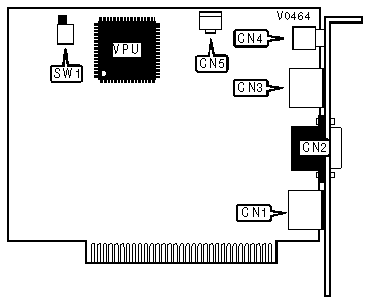

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| DIN 8 connector | CN1 | RCA video port | CN4 |
| (out to VGA card) | | | |
|--------------------+----------+-----------------+----------|
| 15-pin analog | CN2 | Brightness | CN5 |
| video port | | control | |
|--------------------+----------+-----------------+----------|
| DIN 8 connector | CN3 | | |
| (out to SVHS in) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HORIZONTAL VIDEO SYNCHRONIZATION |
|------------------------------------------------------------|
| SW1 |
|------------------------------------------------------------|
| Toggle switch to the side which results in the best |
| picture. |
+------------------------------------------------------------+
