# BOCA RESEARCH, INC.
VORTEK-VL (VGAVL2/VGAVL1)
Category Video
Video Types XVGA
Supported
Video Processor Cirrus Logic
Highest Resolution 1280 x1024
Supported
Data Bus Type 32-bit VESA local bus
Memory Type VRAM
Maximum Onboard 2MB (VGAVL1 shipped with 1MB installed,
Memory upgradable to 2MB)

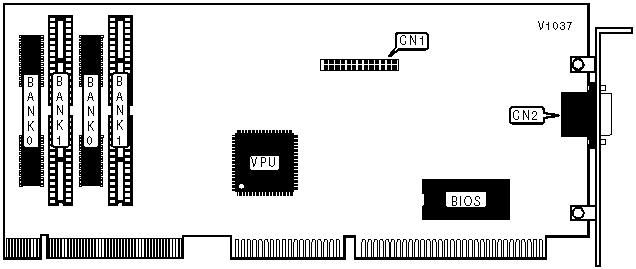

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN2 | VGA feature | CN1 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CLOCK SPEED |
|------------------------------------------------------------|
| Setting | J2 |
|----------------------+-------------------------------------|
| Default | Pins 1 & 2 closed |
|----------------------+-------------------------------------|
| Alternate | Pins 2 & 3 closed |
|------------------------------------------------------------|
| Note: Clock speed jumper not installed on all cards |
| (location unidentified). |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| ยป | 1MB | (4) 256 x 8 | None |
|---+--------------+--------------------+--------------------|
| | 2MB | (4) 256 x 8 | (4) 256 x 8 |
+------------------------------------------------------------+
