# ATI TECHNOLOGIES, INC.
VIDEO BASIC VER. 1.0
Category Video capture
Video Types Supported XVGA
Video Processor Unidentified
Highest Resolution Supported 640 x 480
Data Bus Type 16-bit ISA
Memory Type N/A
Maximum Onboard Memory N/A

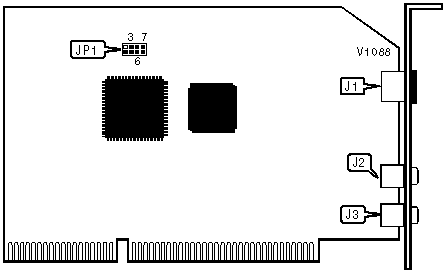

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| S-video in | J1 | Composite video | J3 |
| | | 0 | |
|-------------------+----------+------------------+----------|
| Composite video 1 | J2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION (JP1) |
|------------------------------------------------------------|
| Address | Pins 1 & 2 | Pins 3 & 4 | Pins 5 & 6 | Pins 7 & |
| | | | | 8 |
|---------+------------+------------+------------+-----------|
| 260h | Closed | Closed | Open | Open |
|---------+------------+------------+------------+-----------|
| 280h | Open | Open | Closed | Open |
|---------+------------+------------+------------+-----------|
| 2A0h | Closed | Open | Closed | Open |
|---------+------------+------------+------------+-----------|
| 340h | Open | Closed | Open | Closed |
+------------------------------------------------------------+
