# ASUS COMPUTER INTERNATIONAL
PCI-AV868
Category Video/Sound
Video Types Supported XVGA
Video Processor S3 - 868
Highest Resolution 1600 x 1200
Supported
Data Bus Type 32-bit PCI & proprietary Media Bus
Memory Type DRAM
Maximum Onboard Memory 2MB

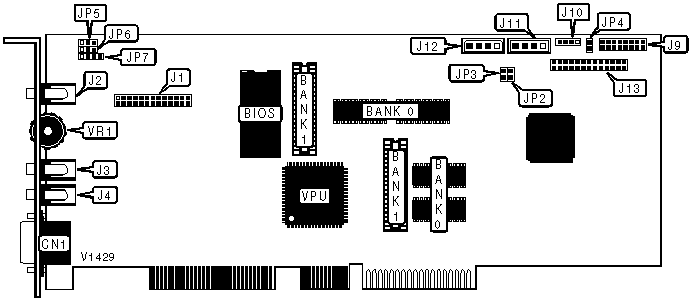

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| 15-pin analog video | CN1 | Mitsumi CD - | J11 |
| port | | audio in | |
|---------------------+----------+----------------+----------|
| VGA feature | J1 | Panasonic CD - | J12 |
| connector | | audio in | |
|---------------------+----------+----------------+----------|
| Line out | J2 | Wavetable | J13 |
| | | interface | |
|---------------------+----------+----------------+----------|
| Mic in | J3 | PC speaker in | JP4 |
|---------------------+----------+----------------+----------|
| Line in | J4 | 4-pin audio | JP7 |
| | | connector | |
|---------------------+----------+----------------+----------|
| 16-pin game port | J9 | Volume | VR1 |
| initerface | | | |
|---------------------+----------+----------------+----------|
| Sony CD - audio in | J10 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUDIO BASE ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP2 | JP3 |
|--------------------+-------------------+-------------------|
| 220h - 233h | Closed | Closed |
|--------------------+-------------------+-------------------|
| 240h - 253h | Closed | Open |
|--------------------+-------------------+-------------------|
| 260h - 273h | Open | Closed |
|--------------------+-------------------+-------------------|
| 280h - 293h | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUDIO OUTPUT SELECTION |
|------------------------------------------------------------|
| Setting | JP5 | JP6 |
|------------------+--------------------+--------------------|
| Line out | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| Speaker out | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 8 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 8 | (2) 256K x 16 |
+------------------------------------------------------------+
