# ATI TECHNOLOGIES, INC.
GRAPHICS SOLUTION
Category Video
Video Types CGA, Monochrome
Supported
Video Processor Unidentified
Highest 640 x 200
Resolution
Supported
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard 64KB (Exact location of memory is
Memory unidentified)

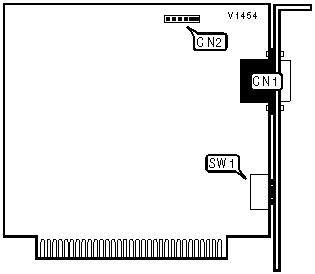

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------------+----------+------------+----------|
| 9-pin digital video | CN1 | Light pen | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MODE SELECTION |
|------------------------------------------------------------|
| Mode | SW1/1 |
|----------------------------------+-------------------------|
| » | CGA | Off |
|---+------------------------------+-------------------------|
| | Monochrome | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR TYPE SELECTION |
|------------------------------------------------------------|
| Type | SW1/2 | SW1/3 |
|----------------------------+---------------+---------------|
| » | TTL Monochrome | Off | Off |
|---+------------------------+---------------+---------------|
| | RGB Color | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Switch | Setting |
|------------------------------+-----------------------------|
| SW1/4 | N/A |
+------------------------------------------------------------+
