# AQUARIUS SYSTEMS, INC
VGA-OP264A
Category Video Card
Video Types Supported XVGA
Video Processor OPTI
Highest Resolution Supported 1280 x 1024
Data Bus Type 32-bit PCI
Memory Type DRAM
Maximum Onboard Memory 2MB

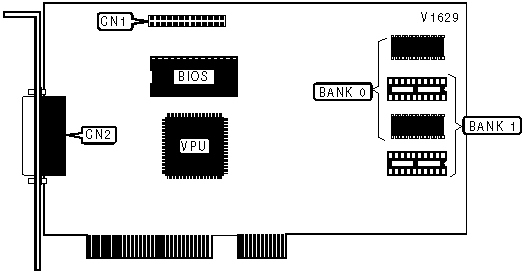

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------+----------+------------------------+----------|
| VGA feature | CN1 | 15-pin analog video | CN2 |
| connector | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
