# ATI TECHNOLOGIES, INC.
VIDEO XPRESSION, ATI-264VT
Category Video
Video Types Supported XVGA
Video Processor ATI
Highest Resolution Supported 1280 x 1024
Data Bus Type 32-bit PCI
Memory Type DRAM
Maximum Onboard Memory 2MB
IMG IMG 1
+------------------------------------------------------------+

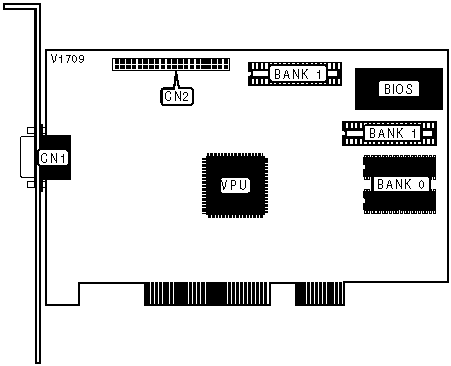

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| 15-pin analog | CN1 | ATI multi--media | CN2 |
| video port | | channel connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
