# ASUS COMPUTER INTERNATIONAL
PCI-V264CT
Card Type Video card
Video Chip Set ATI Mach64 264CT
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 2MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA

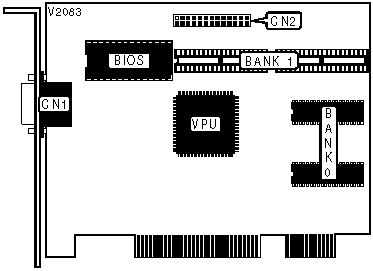

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
