# APPIAN TECHNOLOGY
JERONIMO J2
Card Type Video card
Video Chip Set Cirrus Logic
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 8MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA
IMG IMG 1
+------------------------------------------------------------+

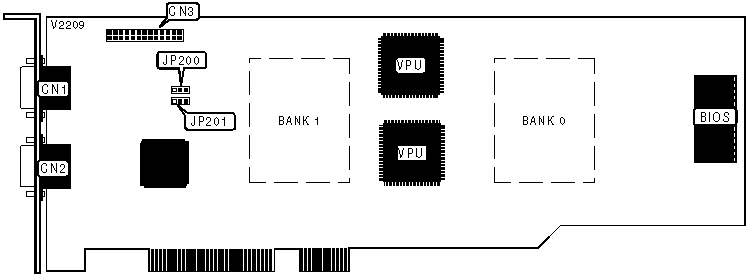

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN3 |
| port | | connector | |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FIX BIOS CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP200 | JP201 |
|------------------------+------------------+----------------|
| ยป | Disabled | Pins 1 & 2 | Pins 1 & 2 |
| | | closed | closed |
|--------+---------------+------------------+----------------|
| | Enabled | Pins 2 & 3 | Pins 2 & 3 |
| | | closed | closed |
|------------------------------------------------------------|
| Note: The FIX BIOS setting should only be used when BIOS |
| problems exist. It permits graphics chips on |
| |
| the adapter to be addressed differently. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-------------------+--------------------+-------------------|
| 4MB | 4MB | None |
|-------------------+--------------------+-------------------|
| 8MB | 4MB | 4MB |
|------------------------------------------------------------|
| Note: The exact chip size is unidentified. |
+------------------------------------------------------------+
