# AUVA COMPUTER, INC.
VGA-V (52100T)
Card Type Video card
Video Chip Set Tseng Labs
Highest Resolution Supported 1024 x 768
Maximum Video Memory 1MB DRAM
Data Bus 8/16-bit ISA
Video Types Supported Monochrome, CGA, EGA, VGA

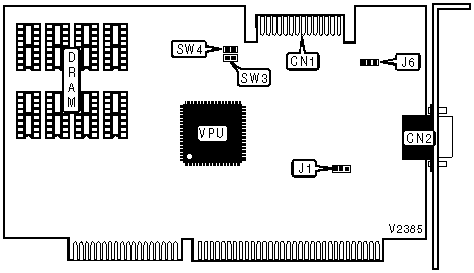

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Feature connector | CN1 | 15-pin analog video | CN2 |
| | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| » | IRQ 2/9 disabled | J1 | Pins 2 & |
| | | | 3 closed |
|---+------------------------------------+-------+-----------|
| | IRQ 2/9 enabled | J1 | Pins 1 & |
| | | | 2 closed |
|---+------------------------------------+-------+-----------|
| » | Scan rate >48.7KHz (non-interlaced | SW3 | Open |
| | mode) | | |
|---+------------------------------------+-------+-----------|
| | Scan rate <48.7KHz (interlaced | SW3 | Closed |
| | mode) | | |
|---+------------------------------------+-------+-----------|
| » | Autodetect enabled | SW4 | Open |
|---+------------------------------------+-------+-----------|
| | Autodetect disabled | SW4 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB, 512 KB, or 1MB DRAM configurations available. |
| The orientation of the banks and size of |
| |
| chips used are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR DETECTION CONTROL |
|------------------------------------------------------------|
| Function | J6 |
|--------------------------------------------+---------------|
| » | IBM standard monitor pinout | Pins 1 & 2 |
| | | closed |
|-------+------------------------------------+---------------|
| | Non-standard color pinout | Open |
|-------+------------------------------------+---------------|
| | Non-standard monochrome pinout | Pins 2 & 3 |
| | | closed |
|------------------------------------------------------------|
| Note: If your VGA monitor boots up in monochrome mode |
| remove the jumper, and if your VGA monochrome monitor |
| does not display correctly place the jumper over pins |
| 2 & 3. |
+------------------------------------------------------------+
