# BEHAVIOR TECH COMPUTER CORPORATION
1515H
Card Type Video card
Video Chip Set Oak Technology
Highest Resolution Supported 800 x 600
Maximum Video Memory 256KB DRAM
Data Bus 16-bit ISA
Video Types Supported VGA

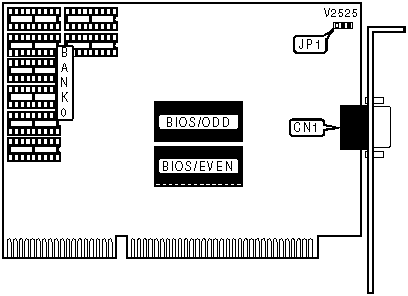

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------------+-------+---------------|
| ยป | Monitor type select color | JP1 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Monitor type select monochrome | JP1 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 256K x 1 |
+------------------------------------------------------------+
