# BOCA RESEARCH, INC.
SUPER VGA (PART 9128)
Card Type Video card
Video Chip Set Unidentified
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 1MB DRAM
Data Bus 16-bit ISA
Video Types Supported XVGA

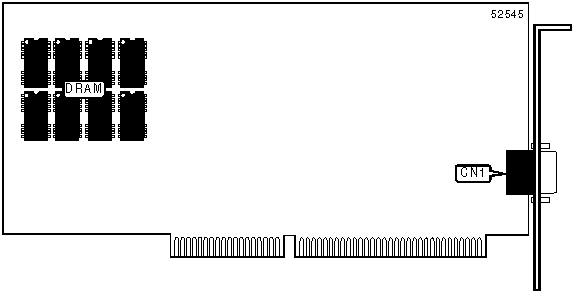

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| 15-pin analog video connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 256KB | (2) 41256K | None | None | None |
|--------+------------+------------+------------+------------|
| 512KB | (2) 41256K | (2) 41256K | None | None |
|--------+------------+------------+------------+------------|
| 1MB | (2) 41256K | (2) 41256K | (2) 41256K | (2) 41256K |
|------------------------------------------------------------|
| Note: The orientation of the banks is unidentified. |
+------------------------------------------------------------+
