# BOCA RESEARCH, INC.
VOYAGER MOVIE PLAYER (SVMP64)
Card Type Video MPEG card
Video Chip Set S3
Highest Resolution Supported 1600 x 1200
Maximum Video Memory 2MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA

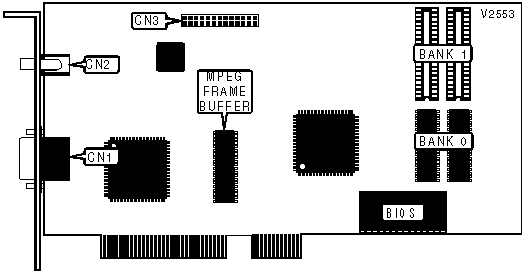

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN3 |
| port | | | |
|------------------------+-------+-------------------+-------|
| Audio out port | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256KB x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 256KB x 16 | (2) 256KB x 16 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MPEG FRAME BUFFER CONFIGURATION |
|------------------------------------------------------------|
| Note: 512KB is factory installed. |
+------------------------------------------------------------+
