# ARTIST GRAPHICS
NETVISION 2000
Card Type Video card
Video Chipset Artist Graphics ARTIST 3GA
Maximum Video Memory 2MB VRAM
Data Bus 32-bit PCI
Video Types Supported XVGA
Highest Resolution Supported 1280 x 1024

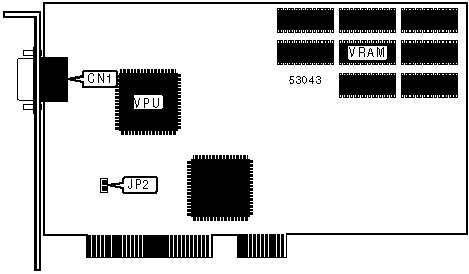

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| 15-pin analog video out | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | VGA BIOS enabled | JP2 | Open |
|---+------------------------------------+-------+-----------|
| | VGA BIOS disabled | JP2 | Closed |
+------------------------------------------------------------+
