# BOCA RESEARCH, INC.
SUPER XVGA (SVGAP1)
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 512KB DRAM
Video Types Supported XVGA
Highest Resolution Supported 1280 x 1024
Data Bus 32-bit PCI

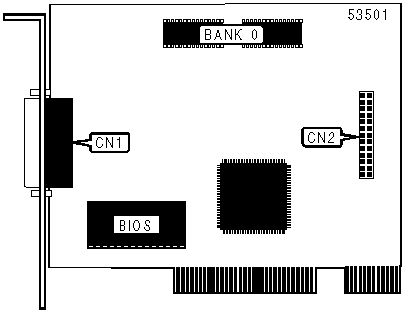

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin digital video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
