# ACHME COMPUTER, INC.
MS-4402 PCI ALI VGA CARD (VER. 1.1)
Card Type Video card
Video Chip Set Avance Logic ALG2301
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 2MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA
IMG IMG 1
+------------------------------------------------------------+

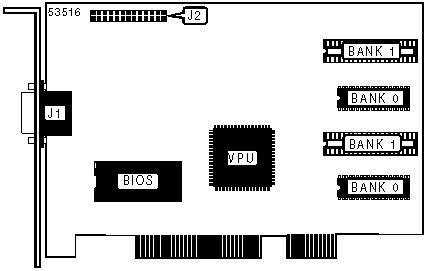

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | J1 | Feature connector | J2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
