# ACT/UNITRON COMPUTERS & COMPUTER PARTS
M-MIL/21
Card Type Video card
Video Chip Set MGA
Maximum Video Memory 8MB WRAM
Video Types Supported VGA
Highest Resolution Supported 1600 x 1280
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

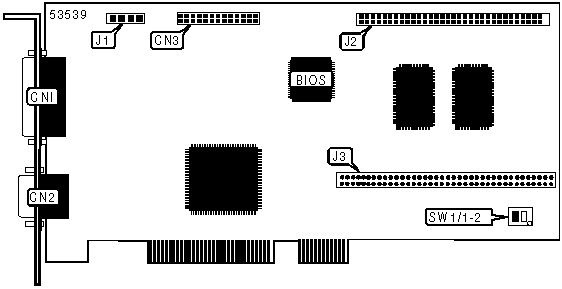

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | Access bus | J1 |
| port | | | |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN2 | Connector for RAM | J2 |
| port | | expansion module | |
|---------------------+-------+----------------------+-------|
| Feature connector | CN3 | Connector for RAM | J3 |
| | | expansion module | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| BIOS protected | SW1/1 | Off |
|-----------------------------------------+-------+----------|
| BIOS unprotected | SW1/1 | On |
|-----------------------------------------+-------+----------|
| VGA for single screen configuration, | SW1/2 | Off |
| enabled | | |
|-----------------------------------------+-------+----------|
| VGA for dual screen configuration, | SW1/2 | On |
| enabled | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Memory modules come in 2MB 4MB and 6MB boards |
+------------------------------------------------------------+
IMG IMG 2
Memory Upgrade Module
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Connector to main | J1 | Connector main | J2 |
| board | | board | |
+------------------------------------------------------------+
