# ASUS COMPUTER INTERNATIONAL
PCI-V775V2C
Card Type Video card
Video Chip Set S3
Maximum Video Memory 2MB EDO DRAM
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600x1200
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

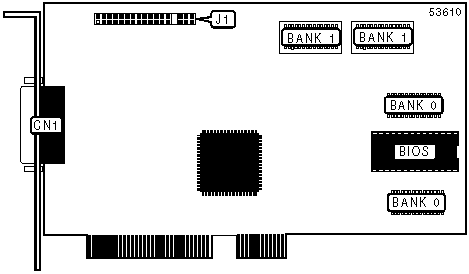

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------------+-------+-----------------+-------|
| 15-pin analog video port | CN1 | LPB connector | J1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (DRAM) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------+------------------------+----------------------|
| 1MB | (2) 512KB | None |
|------------+------------------------+----------------------|
| 2MB | (2) 512KB | (2) 512KB |
+------------------------------------------------------------+
