# ASUS COMPUTER INTERNATIONAL
PCI-V264GT/PLUS
Card Type Video card
Video Chip Set ATI Technologies, Inc.
Maximum Video Memory 4MB SGRAM
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600x1200
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

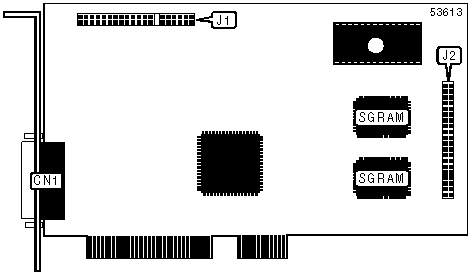

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| 15-pin analog video | CN1 | Connector to 2MB | J2 |
| port | | upgrade board | |
|-----------------------+-------+--------------------+-------|
| Proprietary connector | J1 | | |
| (AMC) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MEMORY CONFIGURATION (SGRAM) |
|------------------------------------------------------------|
| Size | Mainboard | Upgrade board |
|------------+----------------------+------------------------|
| 2MB | 2MB | N/A |
|------------+----------------------+------------------------|
| 4MB | 2MB | 2MB |
+------------------------------------------------------------+
IMG IMG 2
2MB Upgrade Board
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Unidentified | J1 | Unidentified | J2 |
+------------------------------------------------------------+
