# ASUS COMPUTER INTERNATIONAL
PCI-AV264CT-N
Card Type Video/Audio card
Video Chip Set ATI Technologies, Inc.
Audio Chip Set Creative Labs
Maximum Video 2MB DRAM
Memory
Video Types XVGA
Supported
Highest Resolution 1280x1024
Supported
I/O Options Game port, feature connector, VGA port,
microphone in, wavetable connector, PC
speaker in/out, Audio in - CD-ROM (3), line
in, line out, volume control
Data Bus Media Bus

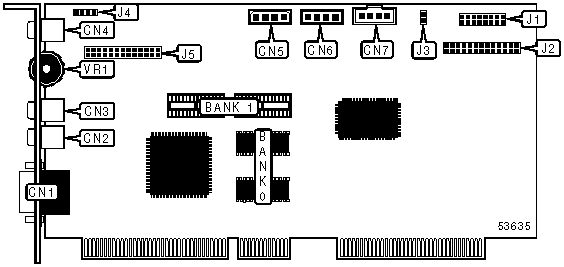

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| 15-pin analog video | CN1 | Game port | J1 |
| port | | | |
|-----------------------+-------+--------------------+-------|
| Line in | CN2 | Wavetable | J2 |
| | | connector | |
|-----------------------+-------+--------------------+-------|
| Microphone in | CN3 | PC speaker in | J3 |
|-----------------------+-------+--------------------+-------|
| Speaker out | CN4 | PC speaker out | J4 |
|-----------------------+-------+--------------------+-------|
| Audio in -CD-ROM | CN5 | Feature connector | J5 |
| (Panasonic) | | | |
|-----------------------+-------+--------------------+-------|
| Audio in -CD-ROM | CN6 | Volume control | VR1 |
| (Mitsumi) | | | |
|-----------------------+-------+--------------------+-------|
| Audio in -CD-ROM | CN7 | | |
| (Sony) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (DRAM) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------+-----------------------+-----------------------|
| 1MB | (2) 256KB x 16 | None |
|------------+-----------------------+-----------------------|
| 2MB | (2) 256KB x 16 | (2) 256KB x 16 |
+------------------------------------------------------------+
