# ASUS COMPUTER INTERNATIONAL
PCI-AV264VT
Card Type Video/Audio card
Video Chip Set ATI Technologies, Inc.
Audio Chip Set Creative Labs
Maximum Video 2MB EDO DRAM
Memory
Video Types XVGA
Supported
Highest Resolution 1280x1024
Supported
I/O Options Game port, VGA port, microphone in,
wavetable connector, PC speaker in/out,
Audio in - CD-ROM (3), line in, line out,
AMC connector, volume control
Data Bus Media Bus

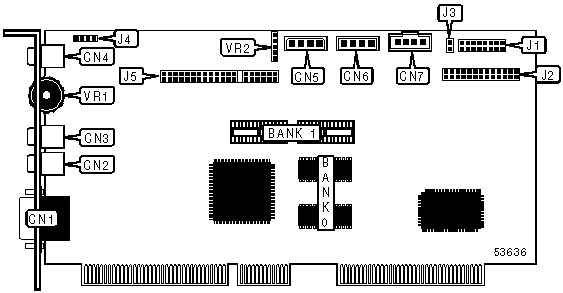

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| 15-pin analog video | CN1 | Game port | J1 |
| port | | | |
|----------------------+-------+---------------------+-------|
| Line in | CN2 | Wavetable connector | J2 |
|----------------------+-------+---------------------+-------|
| Microphone in | CN3 | PC speaker in | J3 |
|----------------------+-------+---------------------+-------|
| Speaker out | CN4 | PC speaker out | J4 |
|----------------------+-------+---------------------+-------|
| Audio in - CD-ROM | CN5 | Proprietary | J5 |
| (Sony) | | connector (AMC) | |
|----------------------+-------+---------------------+-------|
| Audio in -CD-ROM | CN6 | Volume control | VR1 |
| (Panasonic) | | | |
|----------------------+-------+---------------------+-------|
| Audio in -CD-ROM | CN7 | Digital volume | VR2 |
| (Mitsumi) | | control | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (DRAM) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------+-----------------------+-----------------------|
| 1MB | (2) 256KB x 16 | None |
|------------+-----------------------+-----------------------|
| 2MB | (2) 256KB x 16 | (2) 256KB x 16 |
+------------------------------------------------------------+
