# AIMS LAB, INC
VIDEOHIGHWAY XTREME
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported VGA
Highest Resolution Supported Unidentified
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

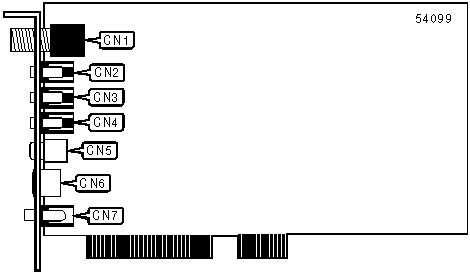

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| TV antenna in | CN1 | Composite video in | CN5 |
|---------------------+-------+----------------------+-------|
| Radio antenna in | CN2 | S-video in | CN6 |
|---------------------+-------+----------------------+-------|
| Line out | CN3 | DC power out | CN7 |
|---------------------+-------+----------------------+-------|
| Line in | CN4 | | |
+------------------------------------------------------------+
