# ACCEL GRAPHICS, INC.
ACCELR8
Card Type Video Accelerator
Video Chip Set Unidentified
Maximum Video 2MB VRAM Framebuffer, 2MB DRAM Localbuffer
Memory
Video Types VGA
Supported
Highest Resolution 1280 X 1024
Supported
Data Bus 32-bit PCI

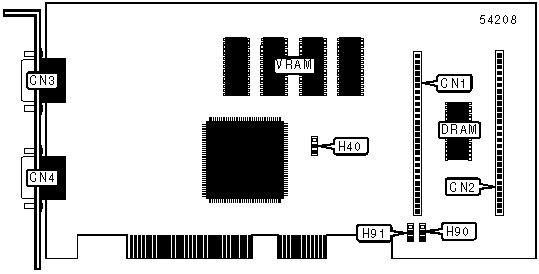

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| 15-pin analog video | CN1 | Header connector to | CN3 |
| port | | memory upgrade | |
| | | module | |
|----------------------+-------+---------------------+-------|
| Header connector to | CN2 | 15-pin analog video | CN4 |
| memory upgrade | | port | |
| module | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | H40 | H90 | H91 |
|-------------------------------+------+----------+----------|
| 2MB DRAM | Open | Pins 1 & | Pins 2 & |
| | | 2 | 3 |
|-------------------------------+------+----------+----------|
| 6MB DRAM (4MB memory module | Open | Pins 2 & | Pins 2 & |
| installed) | | 3 | 3 |
|------------------------------------------------------------|
| Note: Pins designated are in the closed position. |
+------------------------------------------------------------+
Card Type Memory upgrade module
Maximum Video Memory 4MB DRAM Localbuffer
IMG IMG 2
24Z MEMORY MODULE
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Header connector to | CN5 | Header connector to | CN6 |
| main board | | main board | |
+------------------------------------------------------------+
