# ATI TECHNOLOGIES, INC.
2MB SGRAM PCI VIDEO CARD
Card Type Video card
Video Chip Set ATI
Maximum Video Memory 2MB
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

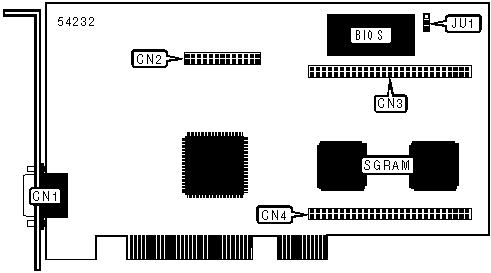

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------+-------+----------------------------+-------|
| 15-pin analog | CN1 | Header connector to memory | CN3 |
| video port | | upgrade module | |
|---------------+-------+----------------------------+-------|
| Feature | CN2 | Header connector to memory | CN4 |
| connector | | upgrade module | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------+----------+-------------|
| ยป | IRQ interrupt disabled | JU1 | Pins 1 & 2 |
| | | | closed |
|------+----------------------------+----------+-------------|
| | IRQ interrupt enabled | JU1 | Pins 2 & 3 |
| | | | closed |
|------------------------------------------------------------|
| Note: Hardware interrupts are not used by any ATI 2D or 3D |
| drivers. The jumper need only be enabled to support PCI |
| bus mastering and applications which require |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Memory configuration is unidentified. |
+------------------------------------------------------------+
