# ACCEL GRAPHICS, INC.
ACCELECLIPSE II (AGP)
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 32MB DRAM
Video Types Supported VGA
Highest Resolution Supported 1280 x 1024
Data Bus AGP

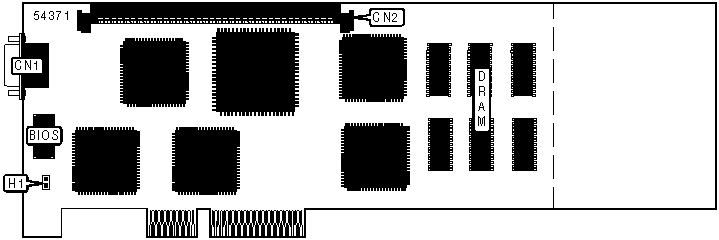

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| 15-pin analog video | CN1 | Memory module | CN2 |
| port | | socket | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| VGA enabled | H1 | Open |
|----------------------------------------+-------+-----------|
| VGA disabled | H1 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: | ACCELECLPSE II is equipped with 15MB of onboard |
| | memory which may be upgraded to 20MB or 32MB with |
| | either a 4MB or 16MB memory module |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Card available in either a three-quarter length or a full |
| length version. Three-quarter length board ends at the |
| dotted line |
+------------------------------------------------------------+
IMG IMG 2
4 MB TEXTURE MEMORY MODULE
IMG IMG 3
16 MB TEXTURE MEMORY MODULE
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Chips are located on both sides of the board. |
+------------------------------------------------------------+
