# BEST UNION ELECTRONICS CO., LTD.
MV-848T
Card Type Video capture/tuner card
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported VGA
Highest Resolution Supported 768 X 576
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

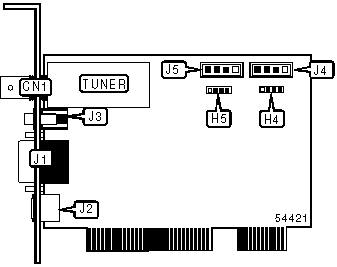

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| TV Tuner | CN1 | S-Video in | J2 |
|----------------------+-------+---------------------+-------|
| Audio out header | H4 | Tuner audio out | J3 |
|----------------------+-------+---------------------+-------|
| Audio in header | H5 | Audio out | J4 |
|----------------------+-------+---------------------+-------|
| Video in | J1 | Audio in | J5 |
+------------------------------------------------------------+
