# ASIA DATA, INC.
DSC-010C
Card Type Video card
Video Chip Set Trident
Maximum Video Memory 1MB DRAM
Video Types Supported VGA
Highest Resolution Supported 1024 x 768
Data Bus 16-bit ISA

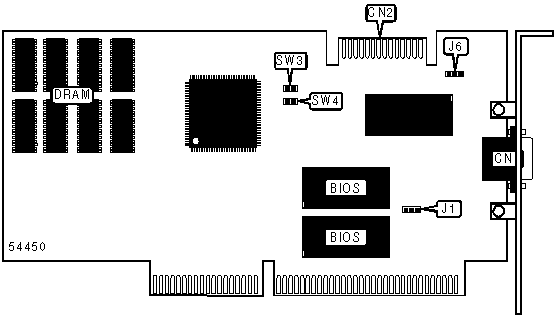

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| IRQ 9 interrupt enabled | J1 | Pins 1 & 2 |
| | | closed |
|-------------------------------------+-------+--------------|
| IRQ 9 interrupt disabled | J1 | Pins 2 & 3 |
| | | closed |
|-------------------------------------+-------+--------------|
| IBM standard monitor pinout enabled | J6 | Pins 1 & 2 |
| | | closed |
|-------------------------------------+-------+--------------|
| IBM standard monitor pinout | J6 | Pins 2 & 3 |
| disabled | | closed |
|-------------------------------------+-------+--------------|
| BIOS autodetect enabled | SW4 | Open |
|-------------------------------------+-------+--------------|
| BIOS autodetect disabled | SW4 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCAN RATE SELECTION |
|------------------------------------------------------------|
| Rate | SW3 |
|----------------------------------------+-------------------|
| 1024 x 768 non-interlaced, 48.7 kHz | Open |
|----------------------------------------+-------------------|
| 1024 x 768 interlaced | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| SW3 is operational with 512KB and 1MB DRAM configurations |
| only. |
+------------------------------------------------------------+
