# ASUS COMPUTER INTERNATIONAL
AGP-V1326
Card Type DVD Video accelerator card
Video Chip Set SIS
Maximum Video Memory 4MB SGRAM
Video Types Supported VGA
Highest Resolution Supported Unidentified
Data Bus AGP

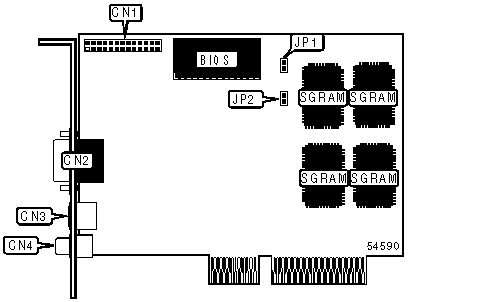

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------+-------+----------------------------+-------|
| Video feature | CN1 | SVHS/TV output port | CN3 |
| connector | | | |
|---------------+-------+----------------------------+-------|
| Video port | CN2 | Composite/TV (RCA) output | CN4 |
| | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| » | PAL standard | JP1 | Closed |
|---+------------------------------------+-------+-----------|
| | NTSC standard | JP1 | Open |
|---+------------------------------------+-------+-----------|
| » | INTA enabled | JP2 | Closed |
|---+------------------------------------+-------+-----------|
| | INTA disabled | JP2 | Open |
+------------------------------------------------------------+
