# ACER, INC.
3D ARTIST (PT70)
Card Type Video Card
Video Chip Set S3 Virge/DX
Maximum Video Memory 4MB
Video Types Supported XVGA
Highest Resolution Supported 1280x1024
Data Bus 64-bit PCI

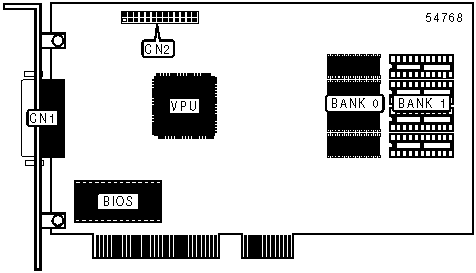

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| VGA port | CN1 | Feature connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (DRAM/VRAM) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-----------------+---------------------+--------------------|
| 2MB | (4) 512KB | None |
|-----------------+---------------------+--------------------|
| 4MB | (4) 512KB | (4) 512KB |
+------------------------------------------------------------+
