# ATI TECHNOLOGIES, INC.
ALL-IN-WONDER
Card Type Video card
Video Chip Set ATI 3D Rage II
Maximum Video Memory 4MB EDO DRAM
Video Types Supported VGA
Highest Resolution Supported Unidentified
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

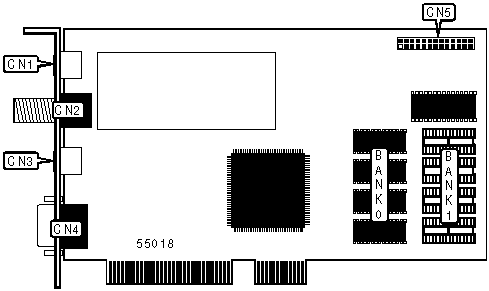

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------+-------+------------------------------+-------|
| A/V in | CN1 | 15-pin analog video port | CN4 |
|-------------+-------+------------------------------+-------|
| CATV in | CN2 | Feature connector (VGA/VESA) | CN5 |
|-------------+-------+------------------------------+-------|
| A/V out | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (EDO DRAM) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 2MB | 2MB | None |
|------------------+--------------------+--------------------|
| 4MB | 2MB | 2MB |
+------------------------------------------------------------+
