# ACCEL GRAPHICS, INC.
ACCELGALAXY 52
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 52MB
Video Types Supported Monochrome, CGA, EGA, VGA, XVGA
Highest Resolution Supported 1920 x 1080
Data Bus 32-bit PCI

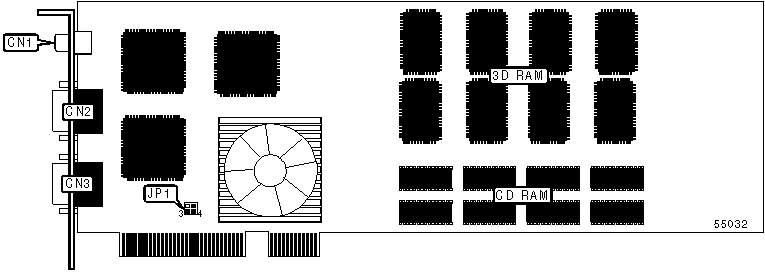

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| RCA stereo output | CN1 | 15-pin secondary | CN3 |
| connector | | video port | |
|-------------------------+-------+------------------+-------|
| 15-pin primary video | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA SELECTION |
|------------------------------------------------------------|
| Setting | JP1/pins 1 & 2 | JP1/pins 3 & 4 |
|------------------+--------------------+--------------------|
| VGA enabled | Open | Closed |
|------------------+--------------------+--------------------|
| VGA disabled | Closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Total memory | Texture memory | Frame/local buffer |
| | (CDRAM) | (3DRAM) |
|---------------+--------------------+-----------------------|
| 52MB | 32MB | 20MB |
|------------------------------------------------------------|
| Note: Memory chips are located on both sides of the board. |
+------------------------------------------------------------+
