# ACCEL GRAPHICS, INC.
ACCELGMX 2000
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 80MB DRAM, 16MB VRAM
Video Types Supported Monochrome, CGA, EGA, VGA, XVGA
Highest Resolution Supported 1920 x 1200
Data Bus 32-bit PCI

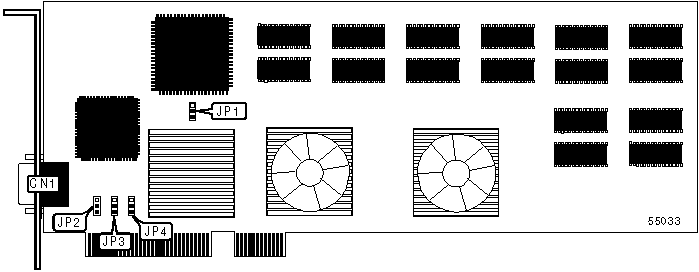

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| 15-pin video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Onboard VGA GAMMA source enabled | JP1 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Onboard VGA GAMMA source disabled | JP1 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Set base class 3 | JP2 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Set base class 0 | JP2 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Onboard VGA source enabled | JP3 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Onboard VGA source disabled | JP3 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Enable fixed address A000-BFFF | JP4 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Disable fixed address | JP4 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Note: Memory chips are located on both sides of the card. |
+------------------------------------------------------------+
