# APPIAN TECHNOLOGY
STANDARD JERONIMO J2
Card Type Video card
Video Chip Set Cirrus Logic
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600 x 1200
Maximum Video Memory Unidentified
Data Bus 32-bit PCI

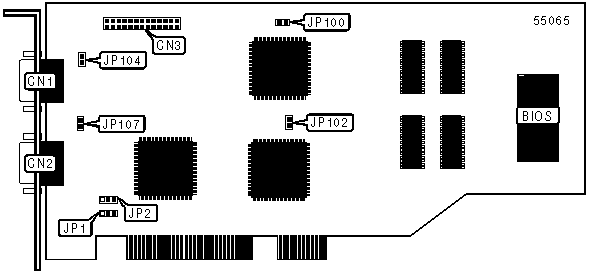

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------------+-------+--------------+-------|
| 15-pin analog video - | CN1 | VESA feature | CN3 |
| channel 1 | | connector | |
|-----------------------------+-------+--------------+-------|
| 15-pin analog video - | CN2 | | |
| channel 2 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------+--------+--------------------|
| | Channel 1 interrupt | JP1 | Pins 2 & 3 closed |
| | enabled | | |
|---+--------------------------+--------+--------------------|
| | Channel 1 interrupt | JP1 | Pins 1 & 2 closed |
| | disabled | | |
|---+--------------------------+--------+--------------------|
| | Channel 2 interrupt | JP2 | Pins 2 & 3 closed |
| | enabled | | |
|---+--------------------------+--------+--------------------|
| | Channel 2 interrupt | JP2 | Pins 1 & 2 closed |
| | disabled | | |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP3 | Unidentified |
| | not alter | | |
|---+--------------------------+--------+--------------------|
| | VGA enabled | JP100 | Open |
|---+--------------------------+--------+--------------------|
| | VGA disabled | JP100 | Closed |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP101 | Unidentified |
| | not alter | | |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP102 | Unidentified |
| | not alter | | |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP103 | Unidentified |
| | not alter | | |
|---+--------------------------+--------+--------------------|
| | Channel 1 CSYNC | JP104 | Closed |
| | compatibility enabled | | |
|---+--------------------------+--------+--------------------|
| | Channel 1 CSYNC | JP104 | Open |
| | compatibility disabled | | |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP105 | Unidentified |
| | not alter | | |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP106 | Unidentified |
| | not alter | | |
|---+--------------------------+--------+--------------------|
| | Channel 2 CSYNC | JP107 | Closed |
| | compatibility enabled | | |
|---+--------------------------+--------+--------------------|
| | Channel 2 CSYNC | JP107 | Open |
| | compatibility disabled | | |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP200 | Unidentified |
| | not alter | | |
|---+--------------------------+--------+--------------------|
| » | Factory configured - do | JP201 | Unidentified |
| | not alter | | |
|------------------------------------------------------------|
| Note: |
| |
| Location and orientation of factory configured jumpers |
| JP3, JP101, JP103, JP105, JP106, JP200, & JP201 are |
| unidentifed |
+------------------------------------------------------------+
