# APPIAN TECHNOLOGY
STANDARD JERONIMO J3
Card Type Video card
Video Chip Set Cirrus Logic
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600 x 1200
Maximum Video Memory Unidentified
Data Bus 64-bit PCI

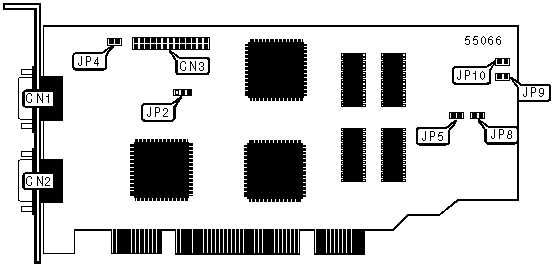

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN3 |
| port 1 | | connector | |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN2 | | |
| port 2 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Interrupt disabled | JP2 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Interrupt enabled | JP2 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Primary VGA enabled | JP4 | Open |
|---+---------------------------------+-------+--------------|
| | Primary VGA disabled | JP4 | Closed |
|---+---------------------------------+-------+--------------|
| | Secondary VGA enabled | JP5 | Open |
|---+---------------------------------+-------+--------------|
| | Secondary VGA disabled | JP5 | Closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8 | Unidentified |
| | alter - multiple board support | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP9 | Unidentified |
| | alter - multiple board support | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP10 | Unidentified |
| | alter - multiple board support | | |
+------------------------------------------------------------+
