# APPIAN TECHNOLOGY
JERONIMO PRO (4MB)
Card Type Graphics Accelerator
Video Chip Set 3DLabs
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600 x 1200
Maximum Video Memory 4MB SGRAM
Data Bus 64-bit PCI

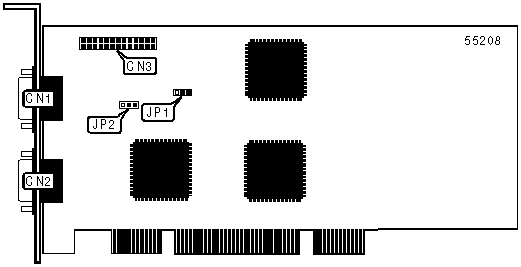

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN3 |
| port 1 | | connector | |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN2 | | |
| port 2 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+-------+-------------------|
| ยป | Primary VGA enabled | JP1 | Pins 1 & 2 closed |
|---+----------------------------+-------+-------------------|
| | Primary VGA disabled | JP1 | Pins 2 & 3 closed |
|---+----------------------------+-------+-------------------|
| | Secondary VGA enabled | JP2 | Pins 1 & 2 closed |
|---+----------------------------+-------+-------------------|
| | Secondary VGA disabled | JP2 | Pins 2 & 3 closed |
+------------------------------------------------------------+
