# ASUS COMPUTER INTERNATIONAL
AGP-V3400TNT/TV/8MB
Card Type Video card
Video Chip Set NVIDIA RIVA TNT
Maximum Video Memory 8MB
Video Types Supported Unidentified
Highest Resolution Supported Unidentified
Data Bus AGP
IMG IMG 1
+------------------------------------------------------------+

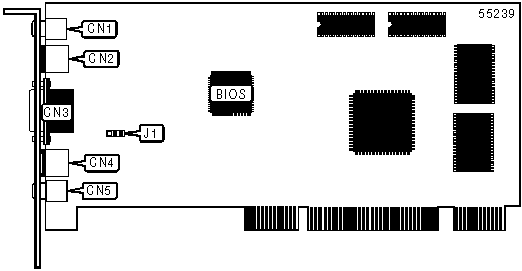

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Composite (RCA) in | CN1 | S - video out | CN4 |
|---------------------+-------+----------------------+-------|
| S - video in | CN2 | Composite (RCA) out | CN5 |
|---------------------+-------+----------------------+-------|
| Video out | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------+----------+--------------------|
| ยป | NTSC | J1 | Pins 2 & 3 closed |
|---+------------------------+----------+--------------------|
| | PAL | J1 | Pins 1 & 2 closed |
+------------------------------------------------------------+
